Scrap Equipment

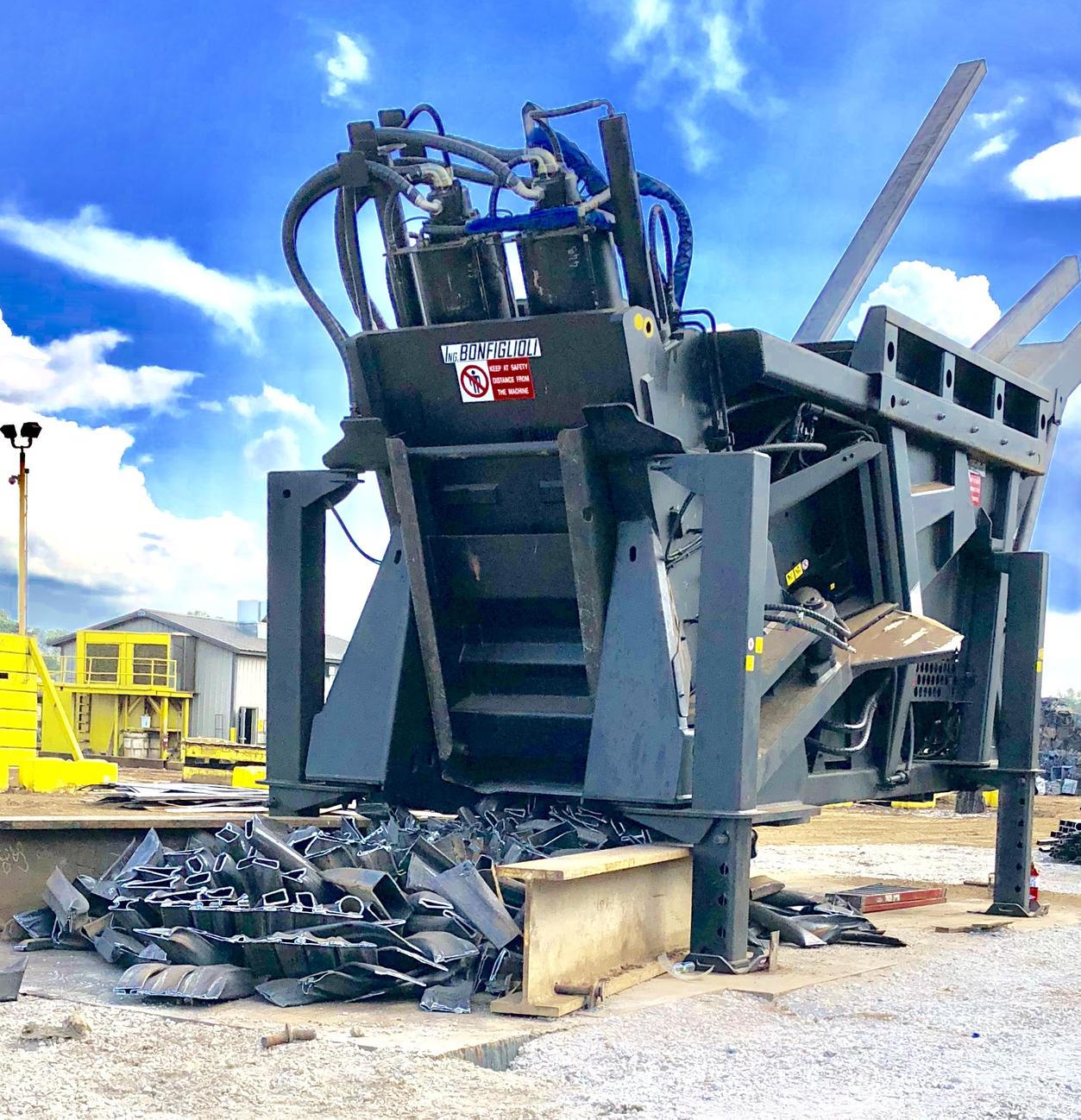

Squalo 3000 Vertical Inclined Shears

Description

Fully transportable, easy set-up. Light or bulky ferrous scrap, railway iron, baled cars, and more are quickly processed for fast loading.

Greatly reduce or eliminate higher cost/less productive excavator shearing

No foundation required; only needs firm level ground

Remote control operation standard; can run manually or fully automatic

Easily transported; machine capable of self loading/unloading

Lighter/loose material is greatly densified before shearing

Reduce or eliminate higher cost/less productive excavator shearing

Choice of electric or diesel power

Parts and service conveniently available in USA

Greatly reduce or eliminate costly and unsafe oxy cutting

Heavy robust design is easy to operate and maintain

Equipment Specification

Length	10,055 mm / 35 ft.1 in.
Width	3,000 mm / 9 ft. 10 in.
Height	3,400 mm / 12 ft. 4 in.
Nominal Diesel Engine HP	415 HP
Weight	108 US tons / 98 Tonnes
Cutting Throat Width	1,410 mm x 420 mm / 55 in x 15.75 in.
Feed Chute Width	2.65 m / 8 ft. 8 in.

Adjustable	48 cm / 18.9 in.
Adjustable	70 cm / 27.6 in.
Adjustable	92 cm / 36.2 in.
Adjustable	114 cm / 44.9 in.

Diesel	6 cyl Caterpillar
Electric	Marathon 250 Kw
Electrical Consumption	250 Kwh
Automatic Cycle	30 second cycle
Average Fuel Consumption	2.1-2.6 gallons per hour / 8-10 liters per hour
Processing Capacity	Up to 41.9 US tons per hour / 35 Tonnes per hour
Shear Force	716 Tons / 650 M/Tonne

Diesel & Electric power – bears the engine manufacturers warranty.

Structure / Framework – 2 years from date of commissioning

Hydraulic and Electric parts – 1 year from date of commissioning

Any parts replaced under the warranty will be supplied free of charge on an ex-factory Al-jon/Bonfiglioli basis.

*Warranty is void if payment in full is not made in accordance with the invoice terms.
