Landfill Compactors

ADV 500

Description

A game-changer for landfill compactors, the ADV 500 is built for performance and reliability, compacting up to 950 tons per day.
  • 86,718 lbs. – 95,450 lbs.
  • 503 HP
  • Up to 950 tons per day

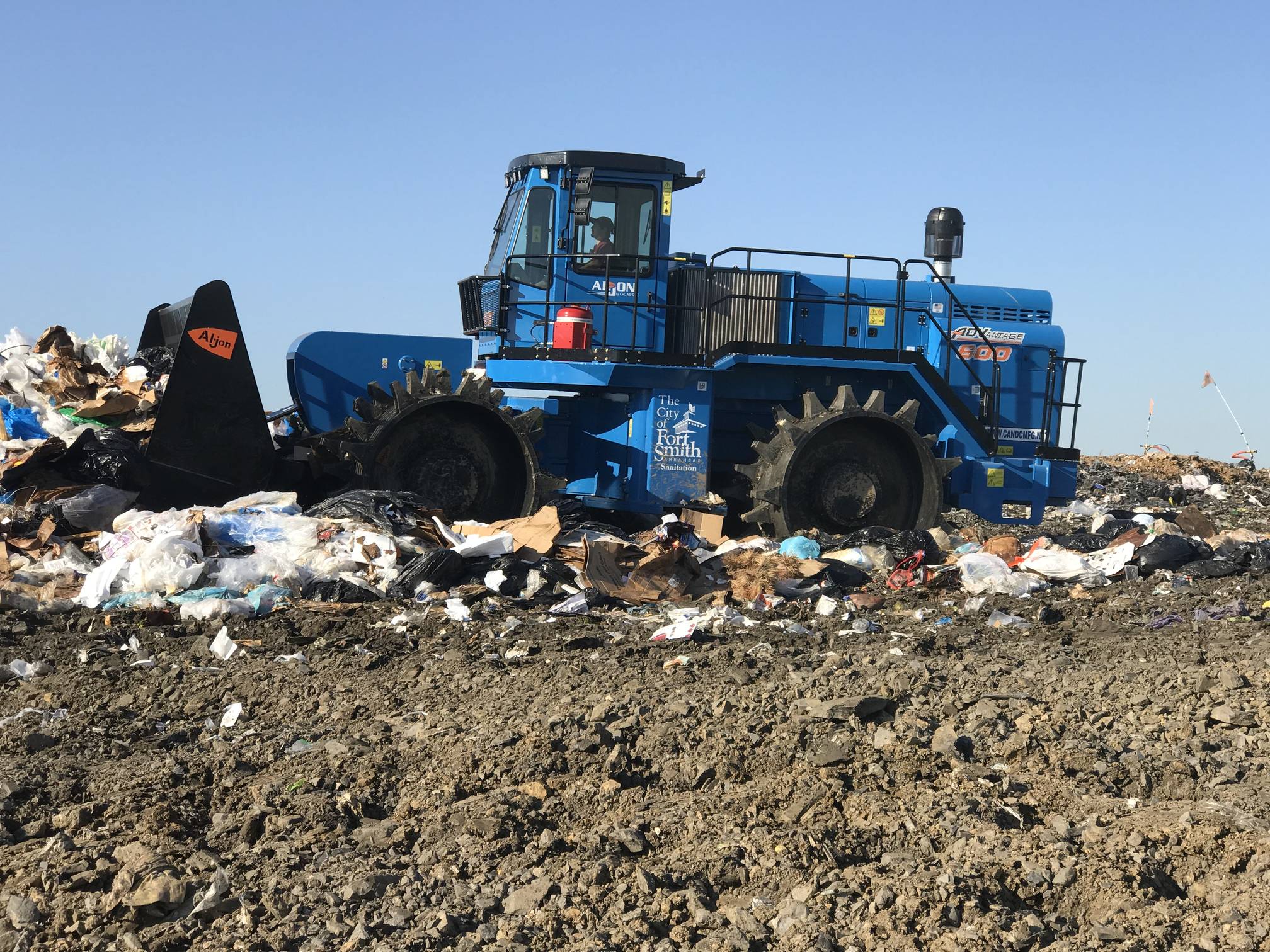

adv500_3_compressed

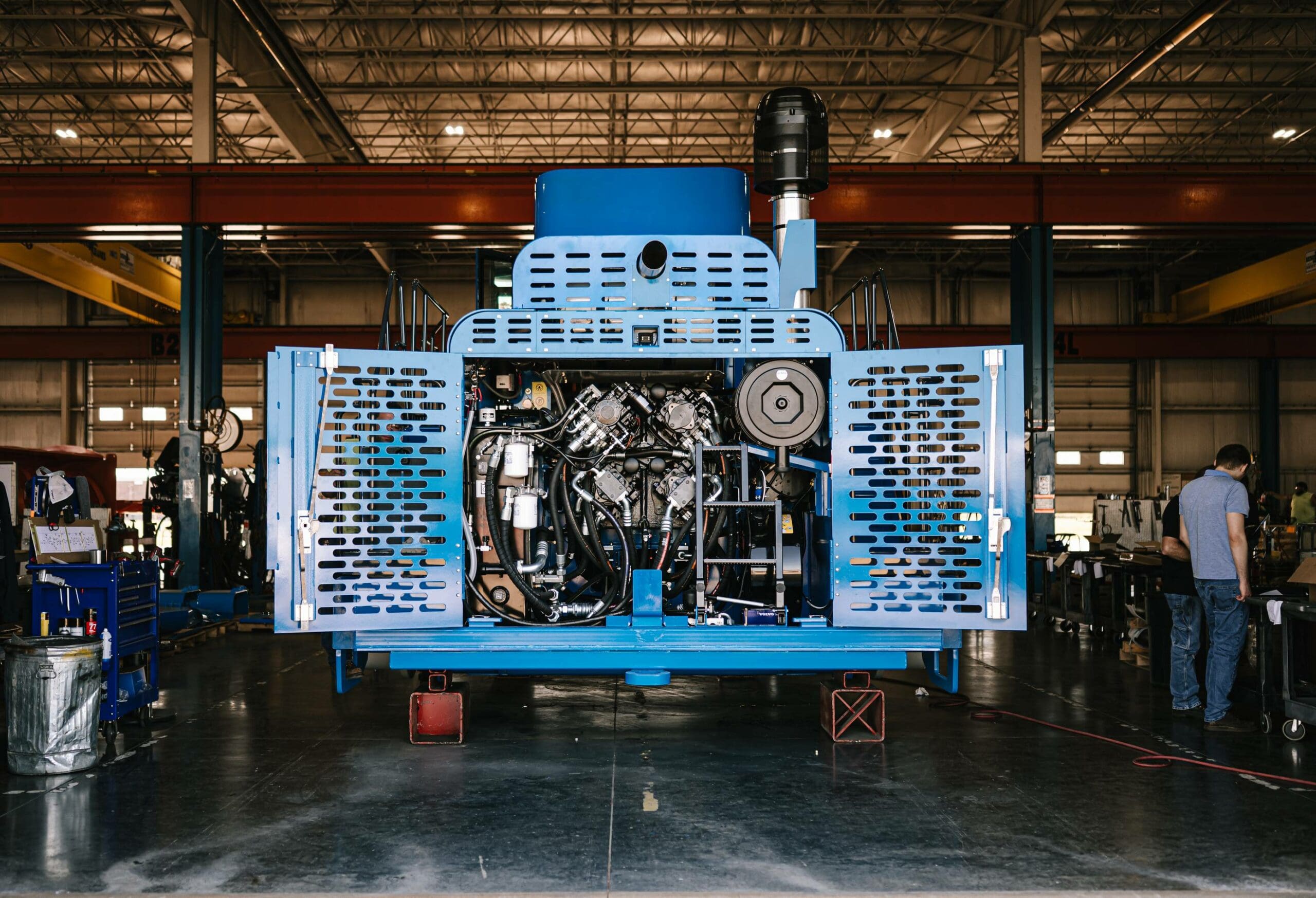

NYA Al-Jon 33_compressed
NYA Al-Jon 29_compressed
Request a Quote

The smallest choice for power & efficiency

Outperforming the Competition

The ADV500 is our smallest model with weight ranges between 86,000lbs. & 94,000 lbs. There are multiple wheel and cleat configurations available as needed for specific applications. The ADV500 can effectively process and compact up to 950 tons per day, will produce between 450 – 490 Pounds Per Linear Inch of compaction depending on the machine configuration, and is powered by a 503 HP, Volvo Penta engine. Requiring NO REGEN and NO DPF.
Request a quote
Highest Horse Power ratings by class compared to competitors models
Boasts a hydrostatic powertrain design instead of competitor powershift transmission
Highest PLI ratings by class compared to competitors models
Powered by Volvo Penta engines which require no DPF and no regen
100% American-made
100% Gradeability
Best standard warranties in the industry
No cleaner bars or wire cutters needed
100% Purpose Built for the landfill application
Cone wheels with NO ballast

Equipment Specification

Download
Operating Weight Range 86,718 lbs. – 95,450 lbs.
Total Length 356.6”
Total Width w/ Straight Blade 184.5”
Total Height 167.5”
Wheel Base 143.9”
Ground Clearance 30.5”
Length w/out Dozer Blade 275.4”
Width w/out Dozer Blade 171.7”
Driving Speed Range 0-5.5 mph
Width 48” Coned Type
Drum Diameter 54”
Number of Cleats Per Wheel 24-32
Height of Cleats 8”
Width w/ Cutting Edge 184.5”
Height 78”
Movement Above Ground Level 59.2”
Movement Below Ground Level 14.3”
Engine EPA Tier 4 Final Volvo TAD1374VE
Power Rating (SAE J1995) 503 HP
Displacement 12.78L
Fuel Tank 215 gallons
Def Tank 18 gallons
Service Brakes All-wheel hydrodynamic | All-wheel spring applied, hydraulic release parking brake
