Keeping it simple. Building it strong.

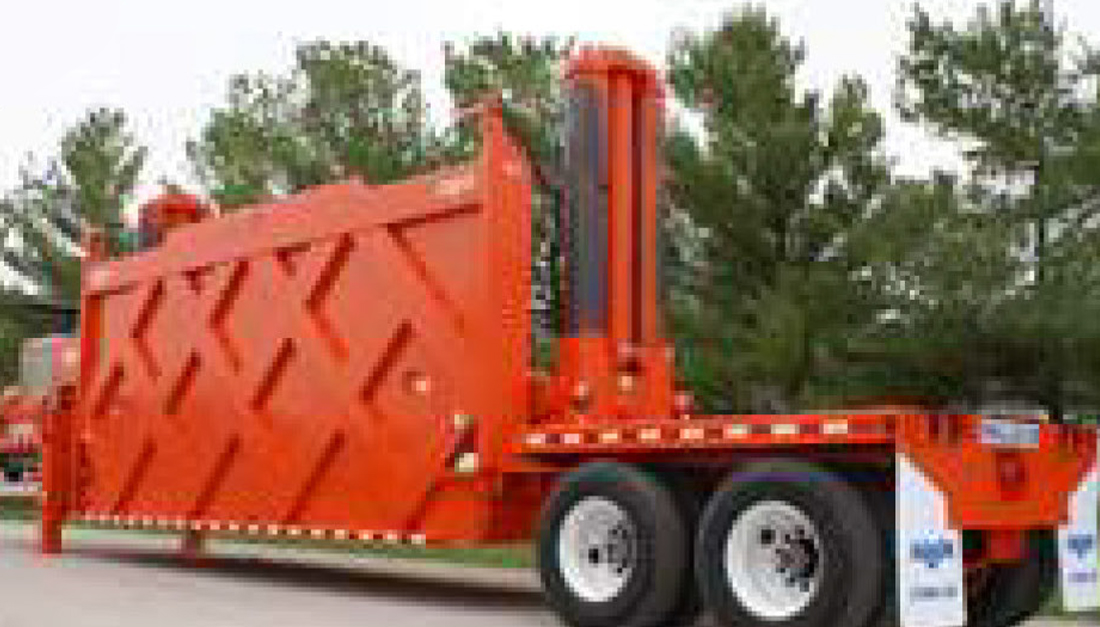

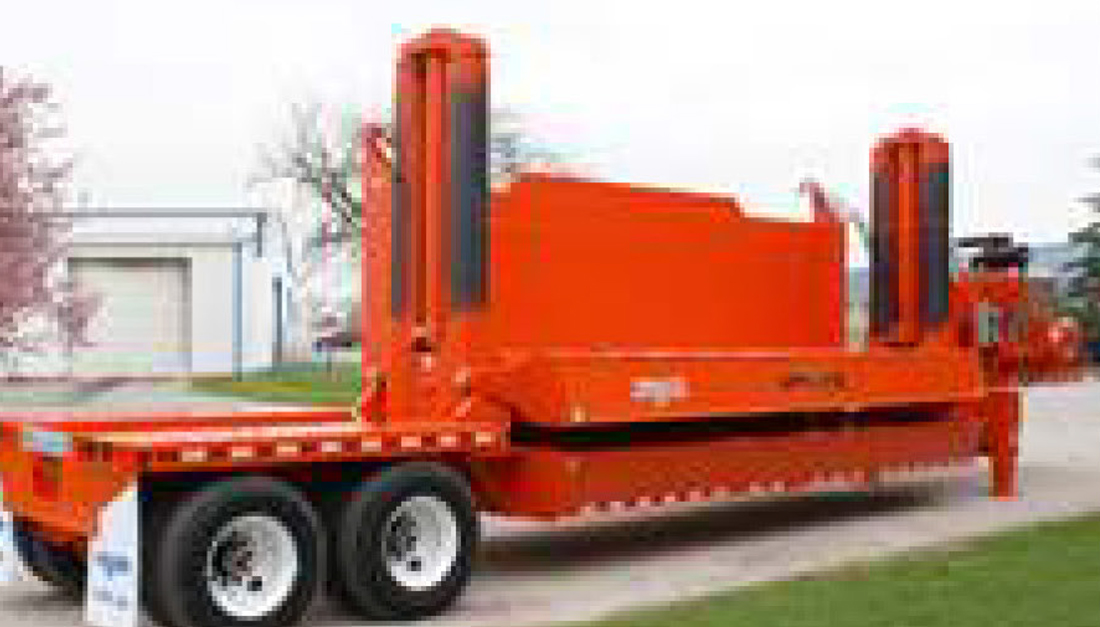

The key to the Impact V Quad-Post Guide System is the equal distribution of the crushing force to the four corners of the crushing lid. The crushing lid is connected to the four sliding guides by heavy-duty pivot lugs mounted on each corner. The stress is distributed equally across the guide posts, sliding guides and pivot lugs, giving the Impact V greater stability and durability.
The back wall has been designed incorporating high strength steel, which provides you with a solid backboard for positioning vehicles during loading and unloading. High strength steel accounts for over 25% of the Impact V’s 57,700 lbs (26,173 kg).
|Overall Length||13.1 m / 43 ft.|
|Travel Height||4 m / 13 ft 5 in.|
|Travel Width||2.5 m / 8 ft 4 in.|
|Overall Weight||26,173 kg / 57,000 lbs.|
|Weight (at Kingpin)||11,159 kg/24,600 lbs.|
|Weight (at Tandem)||15,014 kg/33,100 lbs.|
|Operating Height||6.1 m / 20 ft 1 in.|
|Loading Area||2.1 m / 7 ft wide
6.1 m / 20 ft 1 in length
2.3 m / 7 ft 6 in high-lid fully raised
2229 mm / 9 in high-lid fully lowered
|Diesel Fuel: 151 liters / 40 gallons|
|Hydraulic Fluid: 454 liters / 120 gallons|
|Volvo Tier 4 Engine|
|100 hp electric with VFD Controls|
|49 seconds from full extend to full retraction of cylinder|
|Full machine coverage for 1 year / 2,000 hours warranty|
|Structural coverage for 2 years / 4,000 hrs|
|Volvo Tier 4 coverage for 5 years / 10,000 hours|
|Routine machine service and maintenance points are easily accessible and engineered to be serviced safely and quickly.|
|Many components or spare parts can be sourced locally. Service will be provided by the full resources of Aljon’s parts and service department in the USA.|
